CNC Kitchen Cabinet Door Making Production Line





1,In the woodworking industry, the linear tool changer machining center is widely used. It can be employed for precise carving and cutting of furniture, doors, windows, and other products, significantly enhancing product quality and production efficiency. Specific applications include the manufacturing of panel furniture and cabinet door panels, such as grooving, carving, cutting, and material preparation.

2,In the craft gift industry, the linear tool changer machining center is used for various shadow carving and relief carving processes.

3,In the advertising industry, the linear tool changer machining center is also applicable. It can be used for the production of advertising signs, signage, acrylic cutting and thermoforming, and various other advertising materials and decorative products.







1, The whole bed is thick-walled square tube welded and tempered by steel structure, which has strong rigidity and no distortion.

2, Advanced control system, automatic tool changer spindle, spindle bearings for high-precision ceramic bearings, low noise, long life.

3, Machine control interface design humane, fool-style operation, the operator with simple training can be posts, no skilled workers.

4, Perfect automatic lubrication system to prolong the service life of the machine.

5, Three axis adopt square liner guide to ensure the high precision of the machine and withstand large loads.

6, Y-axis is driven by double motors to ensure smooth running.

7, Electrical wire adopts German high flexible shielded cable.

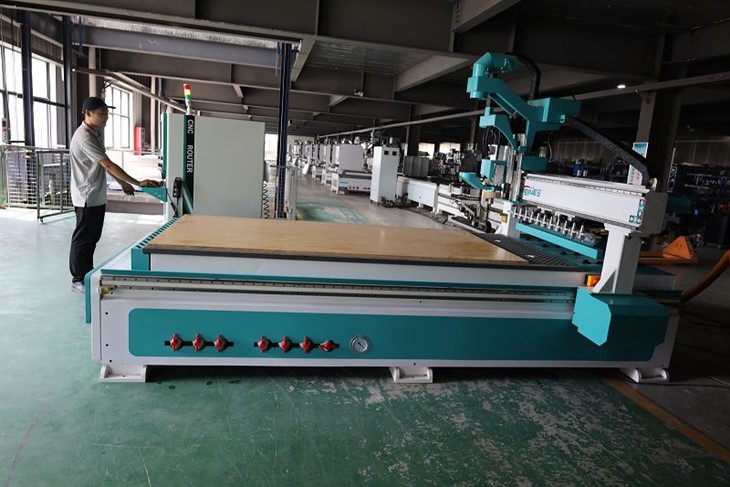

Model	Liner ATC CNC
Working area(X/Y/Z)	1250*2800*300mm
Working table	Vacuum table with7.5kw Water cooling vacuum pump
Maximum operating speed	6000mm/min
Maximum engraving speed	2500mm/min(Maximum engraving speed)
Repositioning accuracy	±0.05mm
Engraving instructions	G-Code
Operating voltage	380V/50HZ
Spindle speed	6000-24000rpm/min
Method of fixing the panels	Vacuum suction
Transmission method	Helical gear drive with 1.5M pitch, Z-axis lead screw
Track	Taiwan high-precision X/Z/Y 25 square rail





Method of operation	1.5 kW AC servo motor
Reducer	Imported gear reducer
Variable frequency drive	11KW variable frequency drive
Drive system	AC servo
Control system	Bao Yuan System
Spindle	9KW air-cooled tool-changing spindle
Maximum tool holder diameter	Φ12.7mm
Counter structure	Single-layer vacuum suction work surface
Location feature	Standard positioning cylinder
Vacuum pump	7.5KW vacuum pump
Included accessories	Wrenches, cutting tools, and clamps
Cable drag chain	High-flex anti-interference cable chain
Cabinet	Large anti-interference cabinet
Lubricate	Automatic lubrication system





Side Hole Machine









Characteristics and effects of side hole machine:

● High precision and stability: The side hole machine adopts laser probes and motion controllers to ensure the accuracy and stability of drilling, suitable for processing various materials and complex shapes, and meets customer requirements.

● Easy to operate: The side hole machine is easy to operate and does not require professional skills, making it suitable for use in small and medium-sized furniture processing factories.

● Multi functional: Different side hole machines have multiple functions and can be used to complete various machining processes, such as drilling, reaming, tapping, chamfering, cutting, etc.







Model	Side hole machine
X-axis working area	2800 mm
Y-axis working area	60-100mm
Bed Structure	Thick-Walled Square Tube Welding
Maximum Operating Speed	3000mm/min
Repositioning Accuracy	±0. 05mm
Engraving Commands	G-code
Operating Voltage	380V/50HZ
Spindle Speed	6000-18000rpm/min
Sheet Fixing Method	Cylinder Fixation
Drive System	X-axis with 1.5M Helical Gear Drive, Y-axis with Cylinder
Rails	High-Precision 25 Square Rails
Operation Mode	Self-Supplied Servo Motor X750W, Y-axis 400W
Reducer	Reducer
Drive System	Self-Supplied Servo
Control System	Self-developed control system
Main shaft	2.2kw air-cooled spindle
Probe	Banner USA probe
Table structure	single-layer polyester table
Positioning function	standard positioning device
Accessories	wrenches, cutting tools, collets, etc.
Cable drag chain	high-flex anti-interference cable
Control cabinet	anti-interference control cabinet
Lubrication	manual lubrication system





Edge Banding Machine









Pre milling - glue pot - pressure pasting - dual color non cleaning glue pot+dual color glue machine - pressure pasting - front and rear alignment - rough trimming - fine trimming - tracking - scraping edge - flexible scraping edge - polishing 1- polishing 2- cleaning separation - narrow edge 40mm - board preheating - no strip detection - electronic digital display precision tool adjustment





Touchscreen: Taiwan Yonghong, pre milling, six wheel press fit one large, five small, six wheel press fit coating, adhesive edging

Centralized lubrication system, dual color no cleaning glue pot, front and rear alignment, rough repair 1, fine repair 2, edge scraping, polishing

track





1. The leading touch screen in the woodworking industry, with fast response and no accidental touch.

2. Diamond pre milling cutter removes the ripple marks and excess burrs of the spiral edge trimming tool on the wooden board, making the edge of the board more closely attached to the edge sealing strip, bonding more firmly, and more aesthetically pleasing. Pneumatic controlled pre milling seat, more precise and easier to operate.

3. 6-wheel pressure bonding is more precise than 4-wheel bonding, with a slightly non slip adhesive line and reliable bonding. Both thick and thin wood veneer can be easily applied, and the cylinder controls the opening and closing of the adhesive door, ensuring stable adhesive volume and even thickness. Double glue pot can use different colors of glue, without frequent cleaning of the glue pot, improving efficiency.

4. Automatic scheduled oil injection and maintenance, multiple oil pipes connected to key moving parts for all-round lubrication, reducing machine wear and extending machine service life.

5. The dual color PUR glue pot+glue machine reduces waiting time for glue application, improves efficiency compared to ordinary sol, reduces time costs, and allows for the replacement of two different colors of glue, resulting in finer glue lines.

6. Single track alignment, cutting off excess edge banding at both ends of the board ensures more stable air pressure, and aligning the head and tail ensures greater stability.

7. Manual electronic digital display tool adjustment control, precise 0.1mm, six blade R knife removes excess edge banding to form rounded corners, making edge trimming more aesthetically pleasing.

8. Manual electronic digital display tool adjustment control, precise 0.1mm, six blade R knife removes excess edge banding to form rounded corners, making edge trimming more aesthetically pleasing.

9. Polish the board after edge sealing to make the upper and lower edges of the sealing tape smoother and more beautiful. Accurately mill the four corners of the adhesive edge strip of the board into an R arc shape, increasing the aesthetic appearance of the workpiece corners.







Model	HKJ-368EHF-PUR
Overall Size(L* W* H)	8500*970*1700mm
Working Pressure	0.6Mpa
Otal power	22KW
Feed speed	18-22m/min
Electric lifting	0.37KW
Panel Thickness	10-60mm
Sheet length	≥120mm
Panel Width	≥60mm(tip 60 mm)
Edge thickness	0.4-3mm
