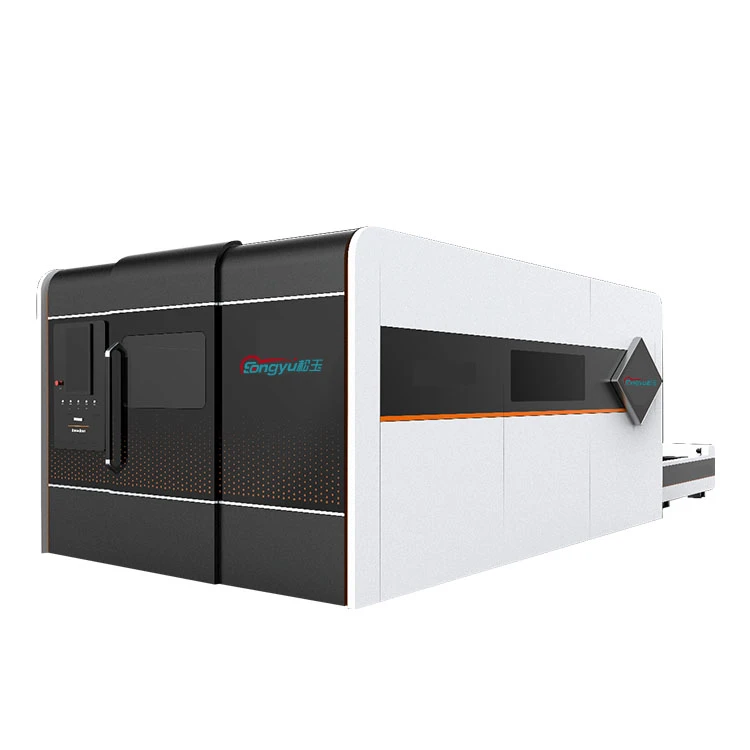

Full-enclosed Fiber Laser Cutting Machine
It is widely used for cutting stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanized sheet and other metal plates.
Description
Introduction
Full-enclosed Fiber Laser Cutting Machine.It is widely used for cutting stainless steel, carbon steel, alloy steel, silicon steel, spring steel,galvanized sheet and other metal plates.
Products Description
1. Automatic exchange workbench configuration, shorten standby time and provide
work efficiency of at least 30%
2. Closed protective cover, safe to use.
3. Imported high-speed servo motor is adopted, with sensitive acceleration and
deceleration to improve cutting efficiency.
4. Equipped with wireless control box to facilitate control.
Technical Parameters
|
Model |
LFD-3015/4015/4020/6020/6025/12025 |
|
X. Y Cutting Area |
1500mm*3000mm( size can be customerized) |
|
Laser Power |
3000W/6000W/8000W/12000W |
|
Driving System |
Servo Motor Delta/Fuji /YASKAWA |
|
Control system |
Cypcut FSCUT2000/4000E |
|
Cutting head |
Raytools BM111/BM06K/BLT441 |
|
X.Y Guiding System |
Taiwan 30/25 |
|
Rack |
YYC-TW 1.5M |
|
Operating System |
Windows 98, Windows XP, Vista |
|
Interface |
LCD screen with USB interface |
|
CAD Design Software |
Available (Optional) |
|
Supported Format |
BMP. HPGL(PLT),DXF,G-CODE,DST,AI |
|
Working Voltage |
AC380V/ 50HZ |
|
Water Chiller |
Hanli HL-3000/6000/8000/12000 |
