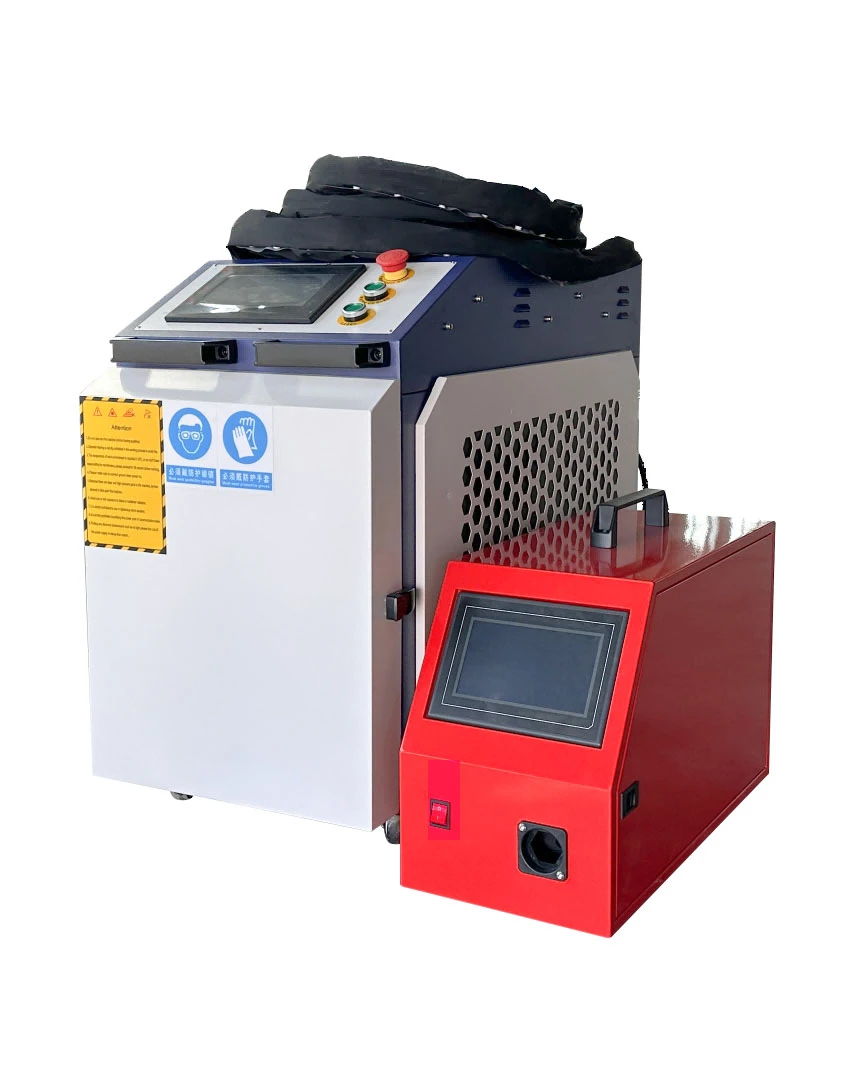

Fiber Laser Welding Machine
This fiber laser welder adopts advanced fiber laser source, featuring concentrated laser beam, high energy density and stable output. It realizes fast, precise welding for stainless steel, carbon steel, aluminum, copper and alloy materials. With low heat deformation, beautiful weld seam and simple operation, it is widely used in hardware, kitchenware, automotive, metal furniture and engineering machinery industries.
Description
Fiber Laser Welder
Our fiber laser welding machine is equipped with high-quality fiber laser generator, independent research and development control system and professional welding gun. Compared with traditional argon arc welding, electric welding and other processes, it has obvious advantages in welding efficiency, forming effect and operation threshold. The laser beam has strong penetration capacity, which can complete spot welding, seam welding, overlay welding and repair welding of various metal workpieces.
Products Description
Technical Parameters
|
Model |
SY-1000/1500/2000/3000 |
|
Maximum laser output power |
1000W/1500W/2000W/3000W |
|
Number of fiber optic outputs |
Single |
|
Light output mode |
continuous |
|
Fiber length |
10m |
|
Fiber bending radius |
200mm |
|
Power consumption of the entire machine |
≤5kW |
|
Overall power stability |
± 1% |
|
Electricity demand |
220V/50/60Hz |
|
Operating temperature range |
10-40℃ |
|
Laser water cooling temperature range |
25-28℃ |
|
Cooling method |
Water cooling |
|
Weight of handheld laser welding head |
≤ 1kg |
|
Aiming and positioning |
Red light indication |
