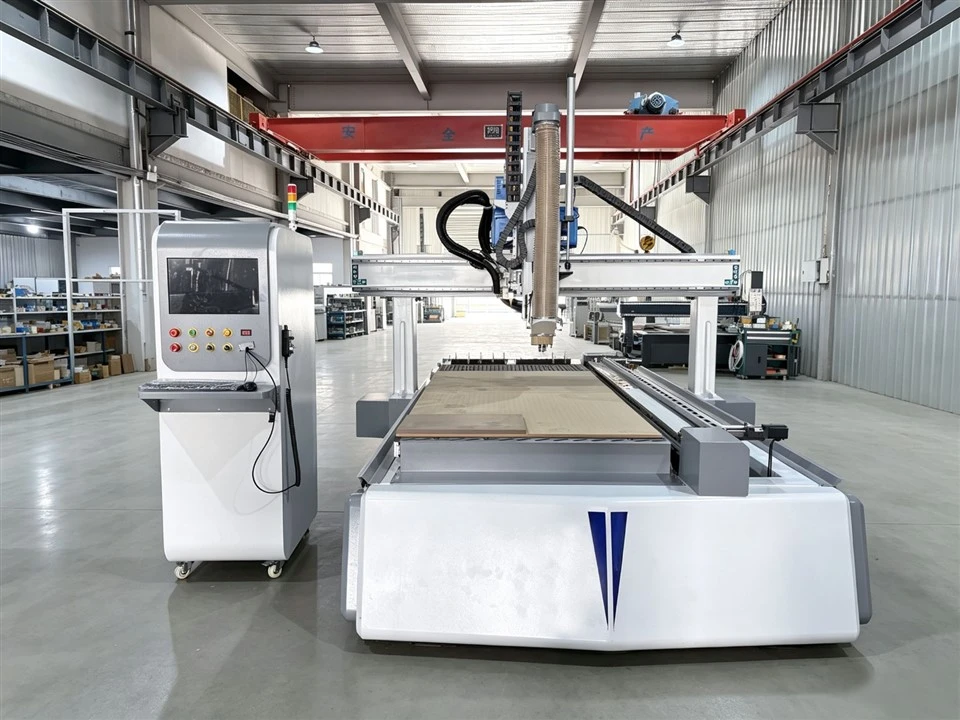

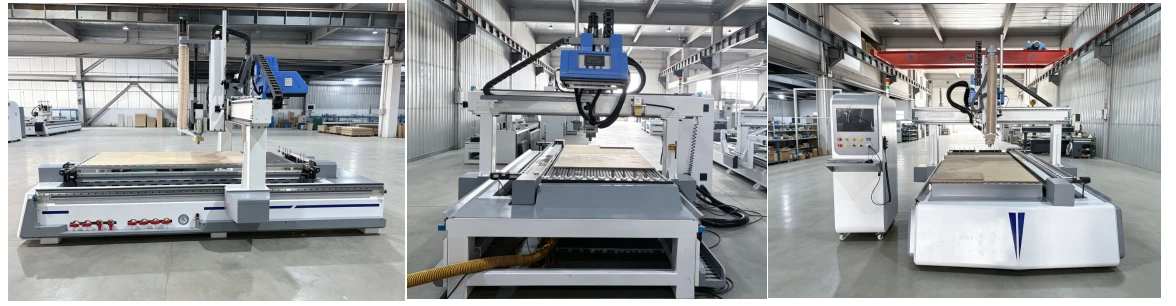

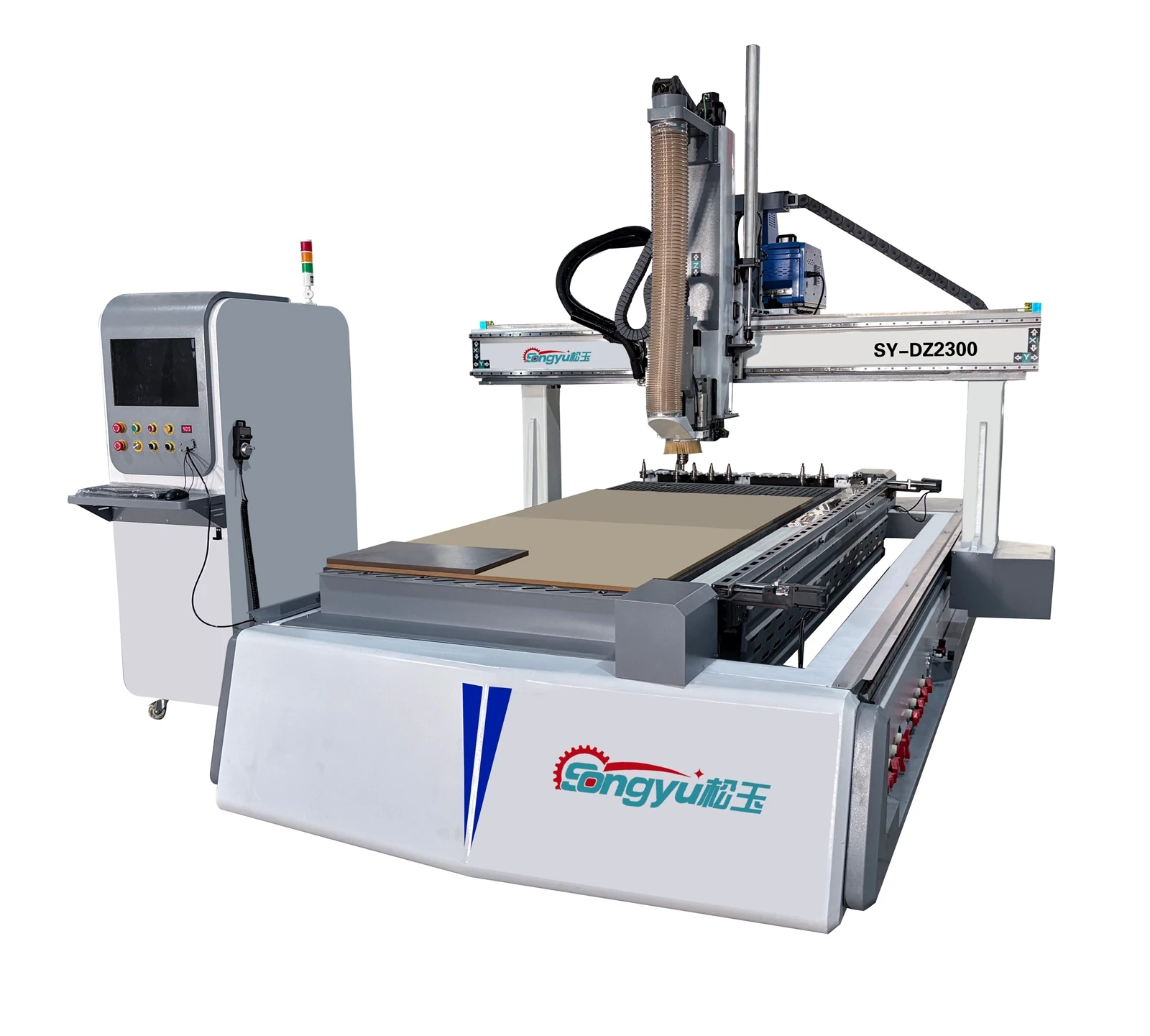

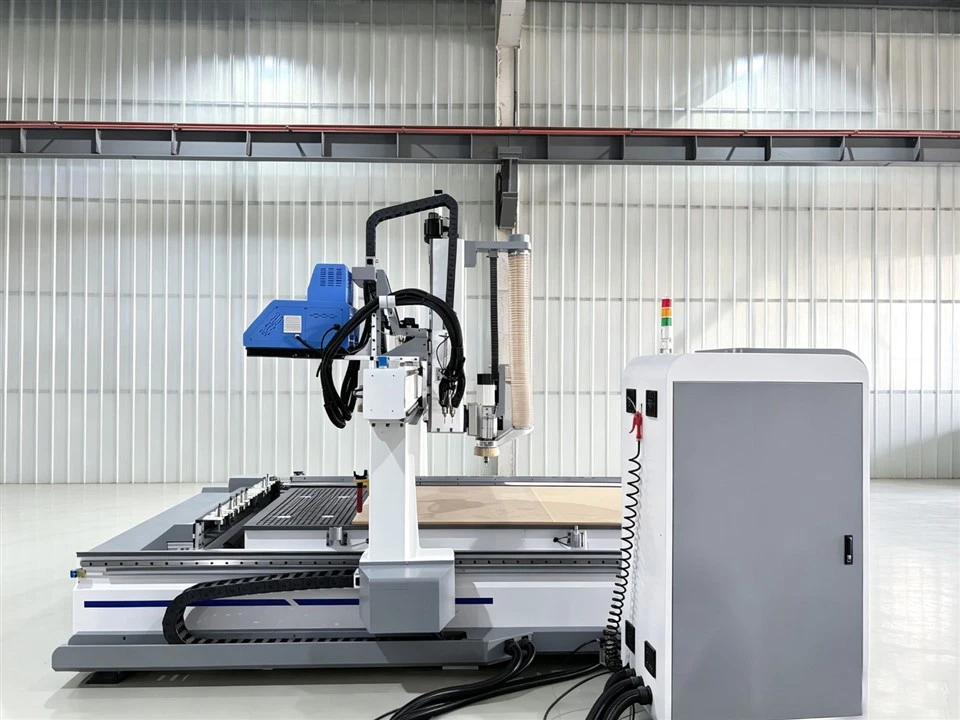

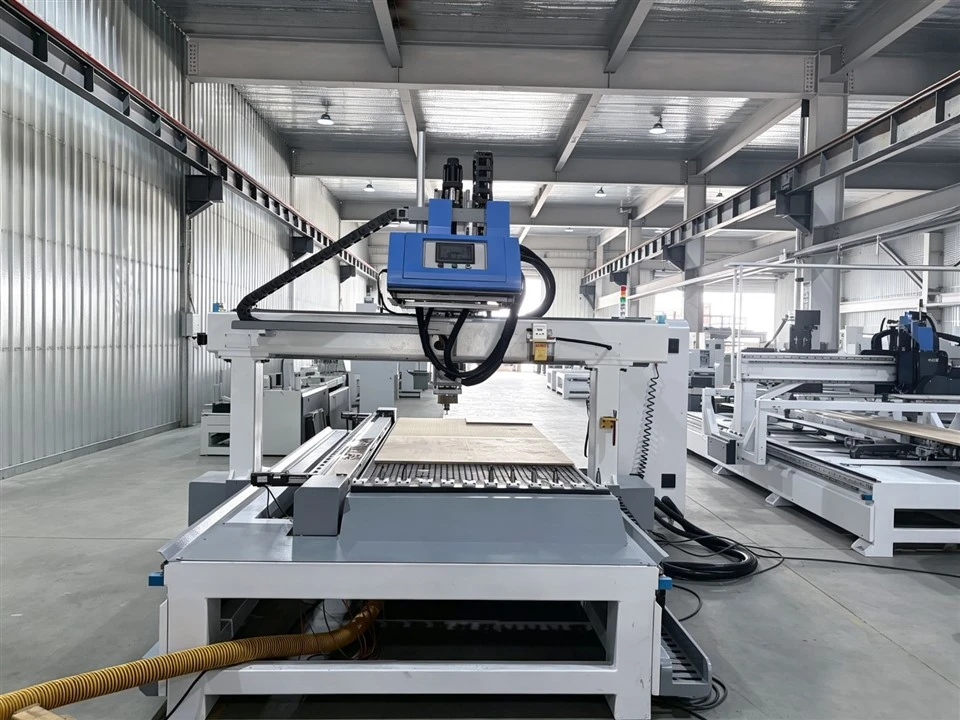

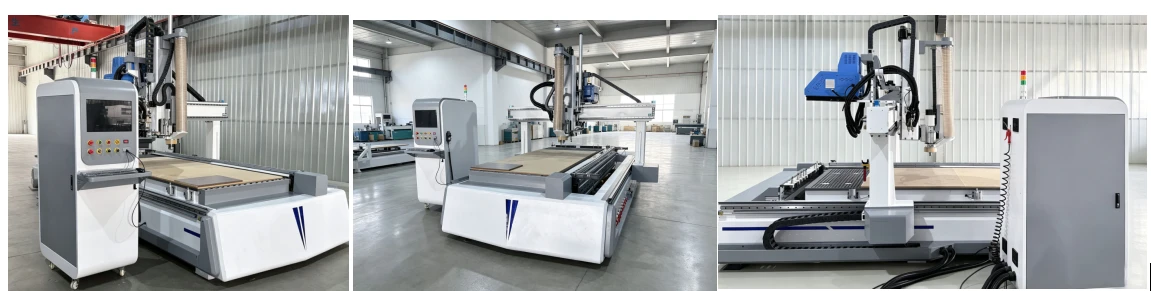

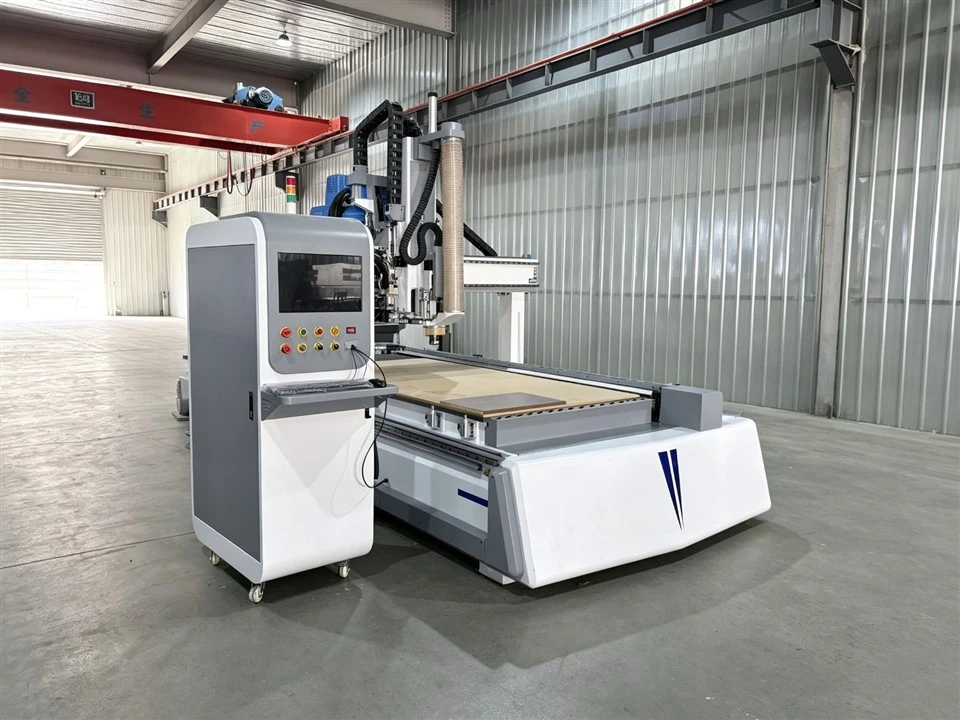

Gantry Curved Arc Glue Injection Bending CNC Router For Door Wall Cabinet

   Introduction

    The gantry-type curved arc glue injection & bending CNC router for door, wall and cabinet is an all-in-one CNC machining center for premium whole-house customization. Featuring a heavy-duty gantry structure and 4-axis servo linkage, it combines six production procedures: cutting, profiling & grooving, curved carving, precision quantitative glue injection, swing-head arc bending and constant-temperature cooling forming. The machine performs fully automatic processing with a single workpiece setup. It is engineered for mass production of high-end custom curved door panels, irregular wall panels, S-curved surfaces and handle-free designs for door-wall-cabinet systems. It addresses common drawbacks of conventional multi-machine production: accumulated tolerance errors, bending cracking, glue failure, low throughput and high labor dependency. It serves as the primary equipment for advanced arc fabrication in integrated furniture manufacturing plants.

1.Curved door panels: invisible arched doors, curved cabinet doors, handle-free curved door panels, curved wardrobe doors, kitchen cabinet doors.

2.Curved wall panel system: curved wall panels, S-shaped curved wall panels, curved background walls, arched openings, arched door casings, curved trim mouldings, curved corner guards.

3.Special-shaped cabinet components: curved cabinet side panels, curved tatami panels, curved wine cabinets, curved entrance cabinets, curved dressing tables.

4.Decorative profile parts: mitered ：canted corner joints, light grooves, pull grooves, stabilizer grooves, hinge bores, lock holes, Lamello grooves, curved relief carvings, etc.

1.Integrated processes, multi-functional all-in-one machine

It integrates six functions: cutting, grooving, curved carving, quantitative glue injection, arc bending and constant-temperature shaping. It replaces multiple separate machines including traditional cutting machines, grooving machines and bending machines, reducing equipment investment and saving workshop space.

2. Single clamping for higher precision

All processing can be finished with only one positioning clamping of the board. It eliminates cumulative errors caused by repeated handling and secondary positioning. The arcs feature high consistency to guarantee uniform results for mass production.

3. Stable bending forming, lower defect rate

With servo precision glue control, swing-head flexible bending and constant-temperature pressure-hold cooling shaping, it effectively solves common arc processing problems. Finished panels enjoy firm adhesion and greatly improved yield rate.

4. High flexibility for diverse high-customization orders

The arc radius R3–R300 is adjustable via program. It supports continuous S-curved surfaces and handle-free special-shaped profiles. New styles can be realized simply by calling saved programs.

Great labor savings and shorter lead time. It removes board transfer between different machines, manual gluing and manual shaping. Fewer operators are needed, human errors are reduced and production flow is accelerated.

5. Heavy-duty frame for long-term stable service

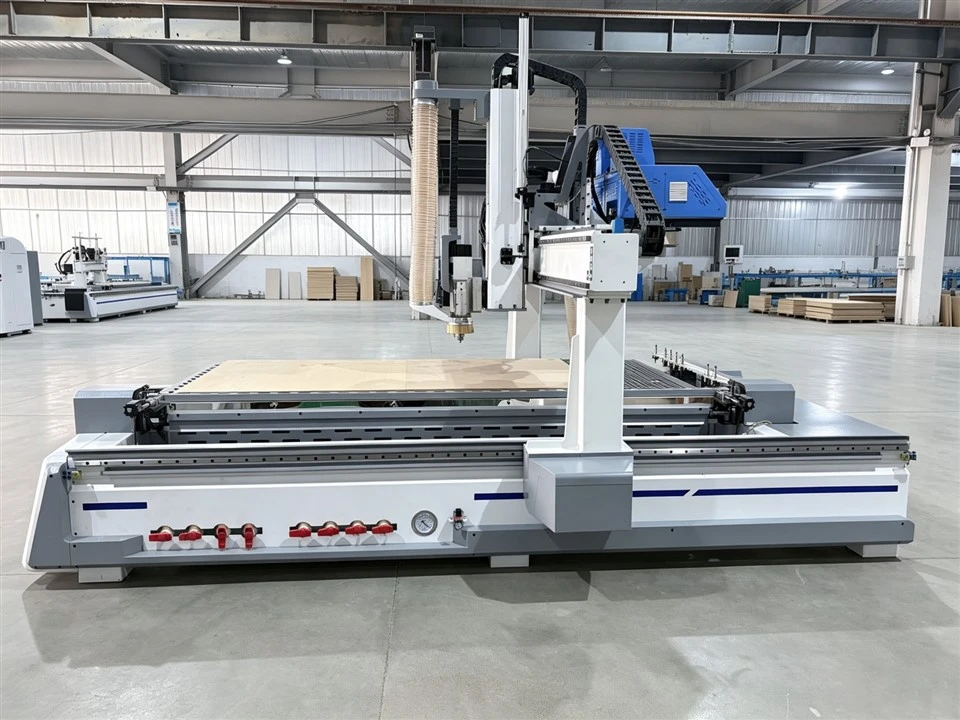

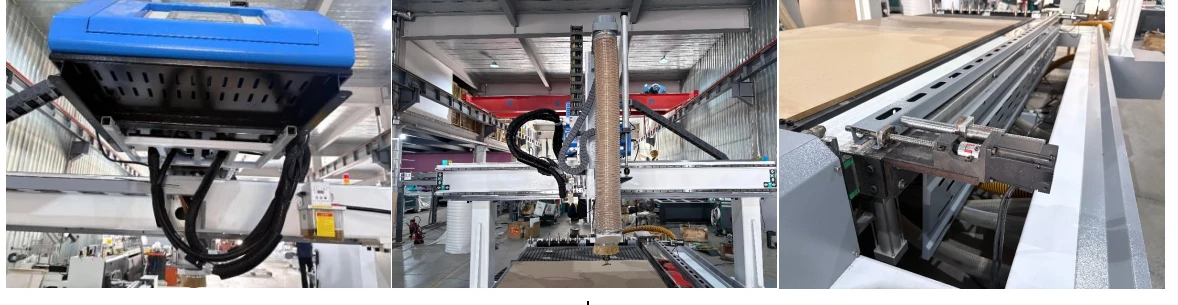

Adopting heavy-duty stress-relieved welded gantry bed, matched with 4-axis servo linkage system, precision linear guides and racks. It resists deformation during large-scale processing and boasts a long service life.

6. Compatible with mainstream boards and full set of door-wall-cabinet processes

Compatible with various decorative boards such as MDF, OSB, plywood, PET board and particle board. Besides arc bending, it also handles standard panel processes including cutting, drilling, Lamello grooves, light grooves and hinge grooves, enabling door, wall and cabinet production on one single machine
