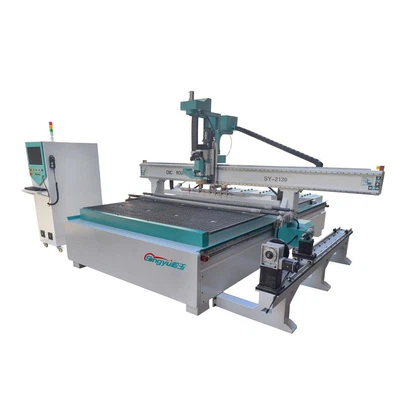

4 Axis Wood CNC Router Machine
video
4 Axis Wood CNC Router Machine

4 Axis Wood CNC Router Machine

This disc-type tool changer 4-axis tilting head machine is suitable for machining curved surfaces and arcs of chair backs, profile milling and relief carving for cabinet doors and wardrobe doors in customized whole-house furniture, as well as cutting lock holes and hinge grooves for solid wood doors.

Send Inquiry

Description

product-1265-1028
Introduction
This disc-type tool changer 4-axis tilting head machine is suitable for machining curved surfaces and arcs of chair backs, profile milling and relief carving for cabinet doors and wardrobe doors in customized whole-house furniture, as well as cutting lock holes and hinge grooves for solid wood doors.
The equipment can meet the processing demands of carving, profile milling and drilling for wooden doors, cabinets, wardrobes and curved chair backs in the home decoration industry. It features a rational structure, easy operation, convenient tool changing and wide range of applications.



Application



The 4-axis tilting head machine is applicable to a wide range of high-precision machining scenarios:
● Home Decoration Industry: When processing complete wooden door sets, the tilting head can be used to machine side lock holes, hinge grooves, chair backs, furniture legs and more. It can also work in vertical mode to process cabinets, wardrobes and cabinet doors.
● Craft Ornaments: For carving handle decorations and various craftworks, the 4-axis tilting head machine delivers superior machining precision.
● Mold Machining: It effectively improves machining accuracy and production efficiency for mold manufacturing.
● Landscape Sculpture & Foam Board Carving: Ideal for landscape sculpture and polystyrene board carving that demand high precision and efficiency.

bab87735b25829d73950f6588fb3ade6







Feature



● Multifunctional: In addition to X, Y and Z three-axis movement, this 4-axis tilting head machine can swing the spindle to machine inclined surfaces for one-step forming. Its versatile functions enable it to handle various complex machining procedures.
● High Precision & High Efficiency: With 4-axis linkage, it can finish multiple processes in one go, greatly boosting productivity and cutting labor and material costs. Equipped with high-precision bearings and featuring excellent load capacity, the machine ensures reliable machining accuracy and stable operation.
● Flexible & Versatile: It features flexible operation modes to simplify complex production workflows. Fitted with a disc tool magazine, frequent tool changes are avoided. It adapts to diverse machining requirements, further improving production efficiency and product quality.
7
8
9
10
11
12
13

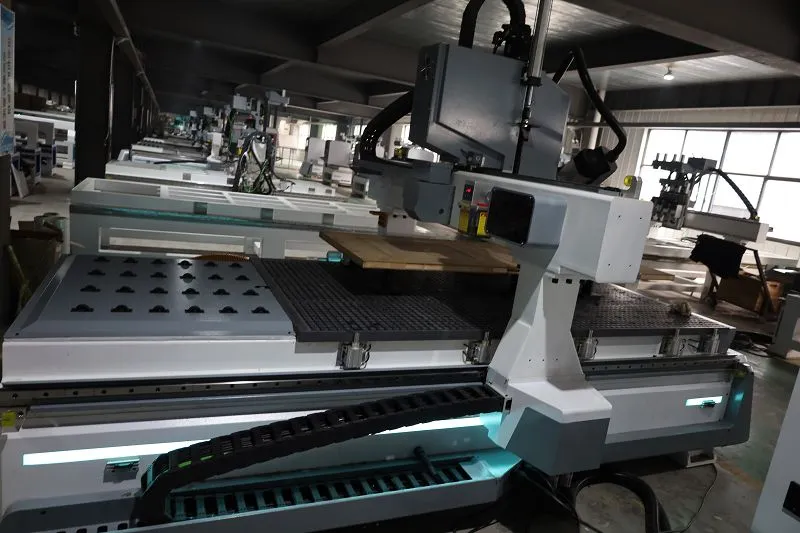

14
15



chnical parameters





Model

Disc-type Tool Changer 4-Axis Tilting Head Machining Center

Working Travel

1300 mm*2500 mm*300 mm

Bed Structure

Thick-walled Square Tube Welded

Maximum Travel Speed

60 m/min

Maximum Engraving Speed

25 m/min (Subject to Material and Engraving Depth)

Repeat Positioning Accuracy

±0.05 mm

Engraving Command

G-code

Operating Voltage

380 V/50 HZ

Spindle Speed

6000-18000 rpm/min

Sheet Fixing Method

Vacuum Adsorption

Transmission Mode

1.5 M Helical Gear Transmission, Z-axis Lead Screw

Guide Rail

High-precision 30 Square Rail for Y-axis, 25 Square Rail for X/Z-axis

Working Mode

1.5 kw AC Servo Motor

Reducer

High-precision Reducer

Frequency Converter

11 KW

Drive System

AC Servo

Control System

LNC  System

Spindle

9 kw Air-cooled Tool Change Spindle

Maximum Tool Holder Shank Diameter

Φ12.7 mm

Table Structure

Single-layer Vacuum Adsorption Table

Positioning Function

Standard Positioning Cylinder

Vacuum Pump

7.5 KW Variable Vacuum Pump

Dust Collector

5.5 kw High-power Double-barrel

Supporting Accessories

Wrenches, Tools, Tool Holders, etc.

Cabinet

Large Anti-interference Cabinet

Lubrication

Automatic Lubrication System
